OLED production lines are built to run continuously, and throughput is the number that determines line economics. Any interruption to deposition adds cost. Quartz crystal microbalance (QCM) sensors are the critical components of rate and thickness control, but they share one practical limitation: crystals wear out and need replacing. In a high-volume OLED line, managing crystal changes without stopping production is a real engineering challenge with a direct impact on tool availability.
How Sensor Downtime Adds Up
A standard single-crystal QCM sensor holds exactly one crystal at a time. When that crystal fails or reaches the end of its usable frequency range, the process has to stop, the chamber has to be vented, and the crystal has to be swapped before production can resume. In a lab or low-volume setting, that’s a manageable pause. On a production OLED line running multiple sources at once, a single crystal failure can shut down the entire process.
How often a crystal needs replacing depends on the total film thickness it accumulates, the material that is being deposited, the deposition rate, and the thermal conditions at its mounting location. OLED processes that deposit onto several substrates between preventative maintenance cycles (including high-rate metal cathode layers that build mass quickly) can exhaust a crystal’s useful life surprisingly fast.
How Crystal 12 Solves It

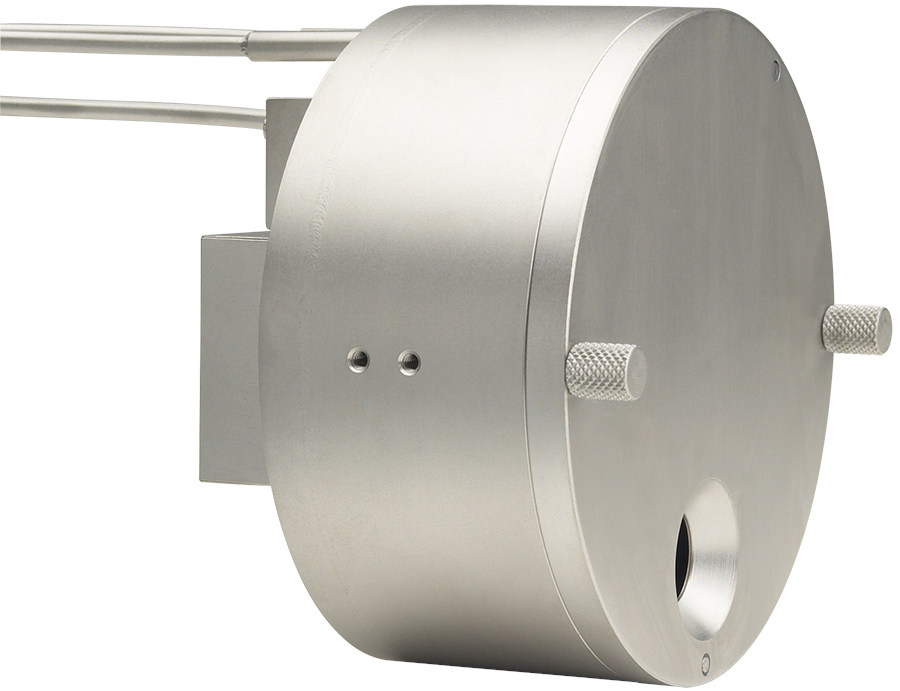

The Crystal 12 sensor from INFICON takes a straightforward approach: instead of one crystal, it holds 12 in a rotary carousel. When the active crystal reaches the end of its service life, the carousel rotates automatically to the next one. Switching is pneumatically driven and takes about a second, so deposition continues without interrupting the run. In practice, a production tool can cycle through all 12 crystals before anyone needs to open the chamber.

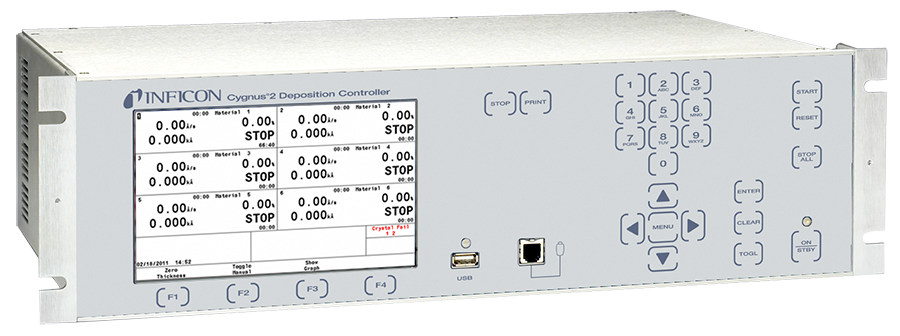

The controller keeps track of which crystal is active, how much thickness each one has accumulated, and when the carousel will need attention. That information lives in the deposition log and on the screen of the Cygnus 2, which means crystal replacement can be scheduled during planned maintenance instead of being handled as an unplanned failure.
More Predictable Uptime
Cygnus 2’s ModeLock technology also plays a role. Conventional oscillator electronics drive a crystal as an active part of the measurement circuit to measure the amplitude of the highest peak, which typically is the fundamental resonant frequency, but can potentially include unwanted vibration modes that wear it out faster. ModeLock keeps the crystal oscillating in the correct mode throughout its life, reducing that unnecessary stress. This results in each of the 12 crystals lasting longer than they would with conventional electronics, stretching the time between carousel services even further and extending the crystal life of each crystal in comparison.
For high-volume OLED lines, the combination of automatic switching and extended crystal life adds up to fewer interruptions and more predictable uptime.
Learn more about the Crystal 12 sensor and the Cygnus 2 deposition controller.
